64 11 905 Removing and Installing/Replacing Ventilation Temperature Sensor

64 11 905 Removing And Installing/replacing Ventilation Temperature Sensor







Necessary preliminary work:
- Remove decorative strip on dashboard in middle

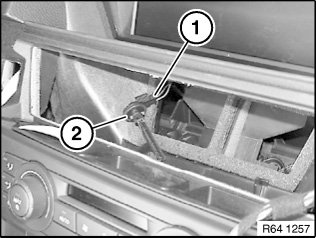

Pull temperature sensor (1) out of retaining lug (2).

Installation note:
Make sure rubber ring is correctly seated.







Disconnect plug connection (1) and remove temperature sensor (2).
