Climate Control Exhaust Gas Sensor: Service and Repair

64 11 991 Removing And Installing/replacing Sensor For Automatic Recirculated Air Control (AUC)







Necessary preliminary work:
- Removing and installing/replacing right microfilter housing cover

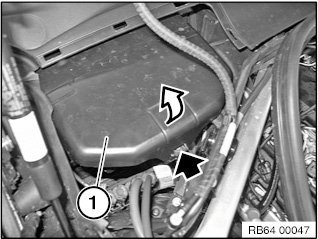

Remove filter cover (1) in direction of arrow.

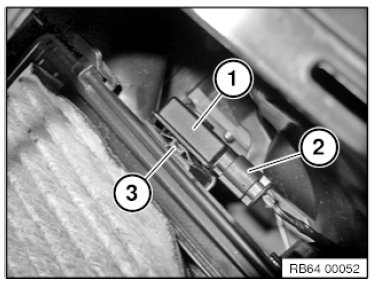

Unfasten plug connection (2) and disconnect.
Unlock retaining tab (1) and remove AUC sensor.







Installation note:

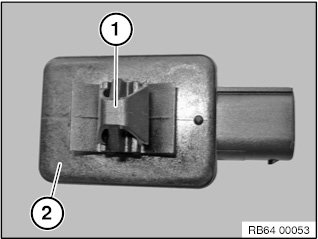

Retaining tab (1) on AUC sensor (2) must not be damaged.
