61 31 229 Removing and Installing/Replacing Both Switches on Sport Steering Wheel

61 31 229 Removing And Installing/replacing Both Switches On Sports Steering Wheel







Necessary preliminary work:
- Remove airbag unit

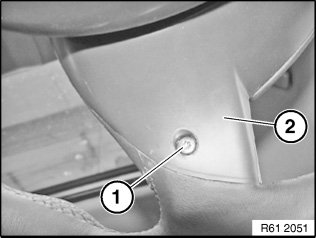

Release screws (1) on left/right/bottom on back of steering wheel (2).

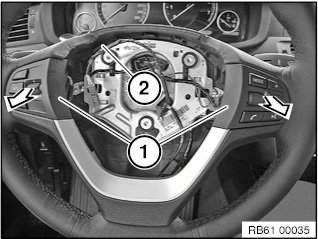

Remove both multifunction steering wheel switches (1) together with trim cover from steering wheel (2) in direction of arrow.

Disconnect plug connections at the back.

Installation note:
Make sure multifunction steering wheel switch (1) is fitted correctly.
Make sure electrical wiring is correctly routed.

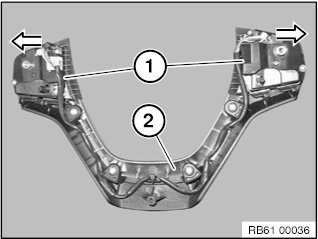

Carefully remove multifunction steering wheel switch (1) from cover (2) in direction of arrow.

Installation note:
Make sure both multifunction steering wheel switches (1) are fitted correctly.
Make sure electrical wiring is correctly routed.
