66 20 537 Removing and Installing/Replacing Rear Middle Right Ultrasonic Transducer

66 20 537 Removing And Installing/replacing A Rear Middle Right Ultrasonic Transducer (Park Distance Control)







WARNING:
Risk of burning.
Work on the exhaust system may only be carried out when it has cooled down.







Lift out plastic rivets.

Installation note:
Replace plastic rivets.

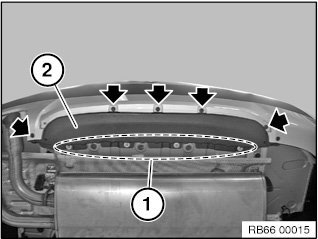

Undo nuts in marked area (1).
Remove cover (2).







NOTE: For purposes of clarity, illustration shows bumper removed.

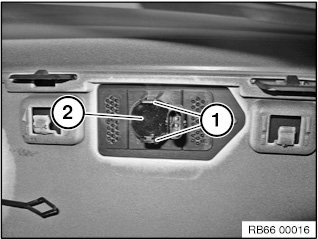

Unlock latch mechanisms (1).
Remove ultrasonic sensor (2).







Unfasten plug connection (1) and disconnect.
Remove ultrasonic sensor (2).







Installation note:
Make sure rubber ring (1) is correctly seated on ultrasonic sensor (2).
