66 20 534 Removing and Installing/Replacing Rear Left Ultrasonic Transducer (Park Distance Control)

66 20 534 Removing And Installing/replacing A Rear Left Ultrasonic Transducer (Park Distance Control)







WARNING:
Risk of burning.
Work on the exhaust system may only be carried out when it has cooled down.







NOTE: Ultrasonic transducers (1) can be removed without the bumper trim being removed.

Release retaining tabs.
Pull ultrasonic sensor (1) out of mounting and unlock and disconnected associated plug connection.







Installation note:

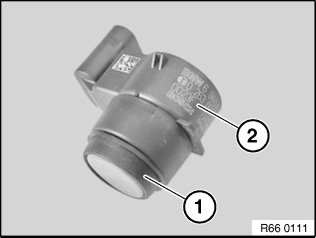

Make sure rubber ring (1) is correctly seated on ultrasonic sensor (2).
