66 20 520 Removing and Installing/Replacing an Ultrasonic Transducer at Front (Inside) (Park Distance Control)

66 20 520 Removing And Installing/replacing A Front Ultrasonic Sensor (centre)







Necessary preliminary work:
- Remove front bumper trim.

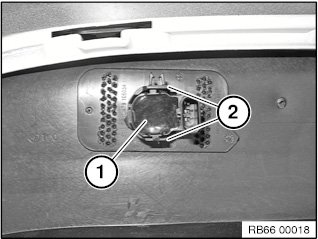

Unclip ultrasonic sensor (1) from retaining tabs (2).

Installation note:
Retaining tabs (2) must not be damaged.
Make sure ultrasonic sensor (1) is securely seated.







Installation note:

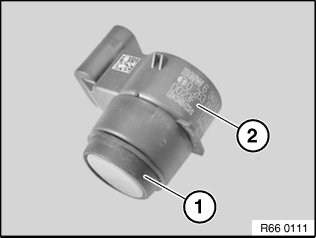

Make sure rubber ring (1) is correctly seated on ultrasonic sensor (2).
