65 77 604 Replacing Sensor MAT (CIS MAT) For Front Passenger Seat Occupancy Detector

65 77 604 Replacing Sensor Mat (CIS Mat) For Front Passenger Seat Occupancy Detection Detector







WARNING:
Note airbag safety regulations.
Incorrect handling can lead to airbag deployment and cause injury.







WARNING:
Only US and Canadian version of front passenger seat (with CIS mat):
The CIS mat can only be removed from the upholstery together with the seat cover.

If CIS mat, seat cover or seat heating is defective, all parts may only be replaced together.

After fitting the seat cover, the CIS mat must be enabled with the BMW programming system.







Procedure for replacing the CIS mat together with the seat cover is described under:
- Replacing seat cover for front seat







The work scope with CIS mat is different in the following work steps:

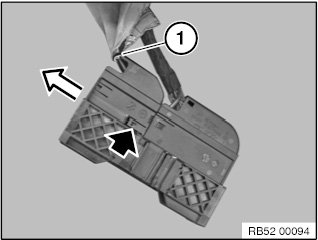

Cut open cable strap (1).
Lift the locking tab and pull the connector out of the side of the connector housing.

Installation note:
Replace cable tie (1).
Connector is encoded against incorrect assembly.







Installation note:
Enabling seat occupancy detection (CIS mat):
- Connect BMW programming system
- Encode airbag control unit
- Delete fault memory if necessary
