72 11 101 Removing and Installing/Replacing Rear Centre Seat Belt

72 11 101 Removing And Installing/replacing Rear Centre Seat Belt







Necessary preliminary work:
- Remove rear seat
- Partially remove left backrest cover

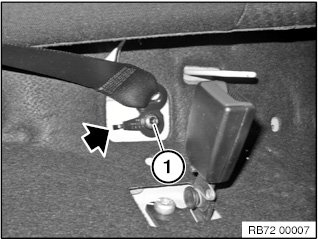

Release screw (1).
Tightening torque 72 11 21AZ.

Installation note:
End fitting is coded against incorrect installation.
Replace screw (1).

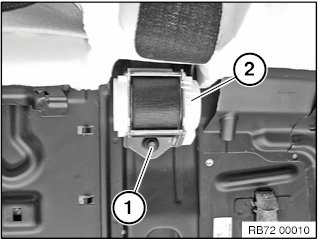

Slacken nut (1).
Tightening torque 72 11 20AZ.

Remove inertia reel mechanism (2) with seat belt anchor fitting.

Installation note:
Retractor mechanism is encoded against incorrect assembly.
Replace nut (1) and fit with Loctite.
