72 11 092 Removing and Installing/Replacing Rear Left or Right Seat Belts

72 11 092 Removing And Installing Or Replacing Rear Left Or Right Seat Belts







Necessary preliminary work:
- Remove left or right rear seat
- Remove capping in luggage compartment







Removing left or right inertia reel mechanism:

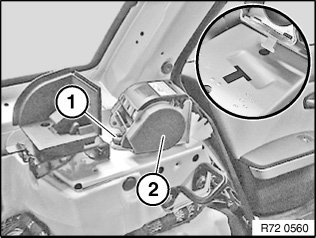

Release screw (1) on retractor mechanism (2).
Remove inertia reel mechanism (2).

Installation note:
Replace screw (1).
Tightening torque 72 11 20AZ.
Automatic reel (2) is encoded against incorrect assembly.

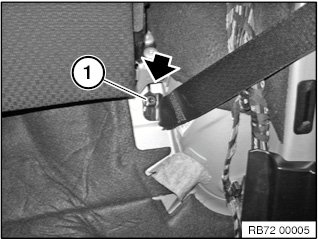

Release screw (1).
Remove seat belt.

Installation note:
Replace screw (1).
Tightening torque 72 11 21AZ.
End fitting is encoded to prevent incorrect assembly.
