72 11 070 Removing and Installing/Replacing Front Lower Strap Fitting (Belt Tensioner), Driver's Seat

72 11 070 Removing And Installing/replacing Front Lower Strap Fitting (belt Tensioner), Driver's Seat







Necessary preliminary work:
- Remove driver's seat.







WARNING:
Read and comply with safety regulations for handling airbag modules and pyrotechnical belt tensioners.

Improper handling can lead to triggering of the pyrotechnical seat belt tensioner or side airbag, resulting in injuries.

Switch off the ignition.

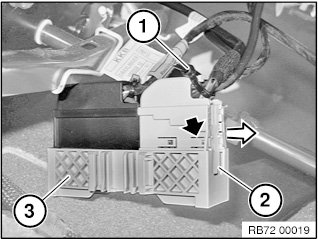

Cut open cable strap (1).
Unlock connector (2) in marked area and pull out of connector housing (3).

Installation note:
Replace cable straps (1).
Make sure connector (2) is correctly locked in connector housing (3).

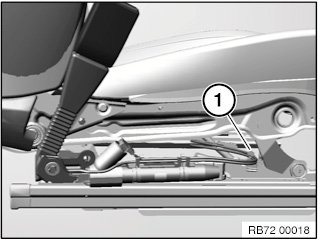

Disconnect cable strap (1) at metal clamp.

Installation note:
Replace defective cable strap.

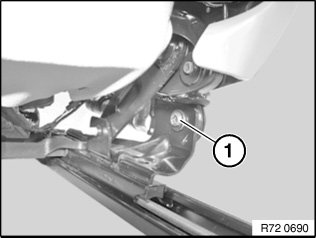

Release screw (1).

Installation note:
Replace screw (1).

Tightening torque 72 11 03AZ.
Remove seat belt tensioner.

Installation note:
Belt tensioner is coded against incorrect assembly.
