Tire Pressure Module: Service and Repair

36 11 105 Removing and installing RDC (Tire Pressure Control) control unit (LOW COST)





Important!
Read and comply with notes on protection against electrostatic damage (ESD protection).

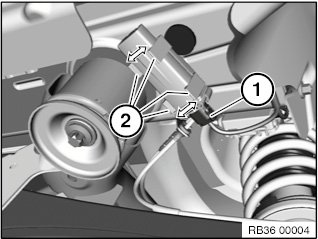

Disconnect plug connection (1).

Press retaining tabs (2) apart as indicated by arrow.

Pull out TPC control unit





Replacement:
- Carry out programming/encoding
