Fuel Pump Control Unit: Service and Repair

16 14 500 Removing And Installing Or Replacing Control Unit For Electric Fuel Pump







IMPORTANT: Read and comply with notes on protection against electrostatic damage (ESD protection).







Necessary preliminary work:
- Remove rear seat.

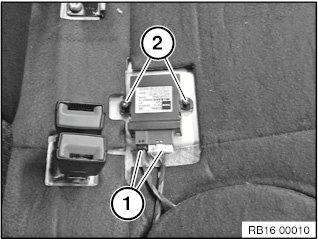

Disconnect plug connection (1).
Loosen the nuts (2) and remove control unit for the electronic fuel pump.

Installation note:

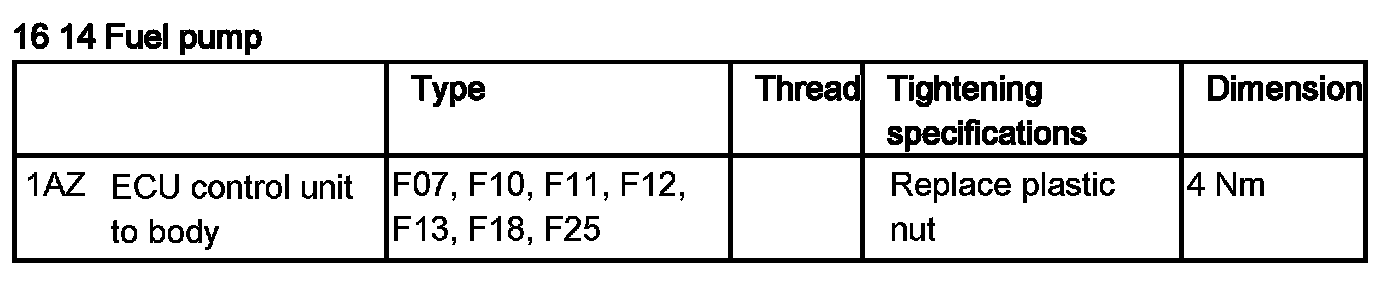

Tightening torque 16 14 1AZ.







Replacement:
- Carry out programming/encoding
