11 61 368 Removing and Installing/Replacing Rear Left Charge-Air Duct

11 61 368 Removing and installing/replacing left-hand charge air duct (N55 )

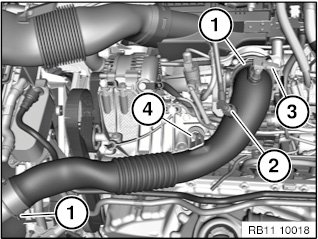

Unlock quick-release couplings (1).

Unclip vacuum hose (2) and lay to one side.

Disconnect plug connection (3).

Pull charge air duct out of rubber grommet (4).

Remove charge air duct.

Installation note:
Plug connection (3) must snap audibly into place!





Assemble engine.
