11 61 362 Replacing Right Charge Air Duct

11 61 362 Removing and installing/replacing right charge-air duct (N55)





Necessary preliminary work:
^ Remove underbody protection
^ Remove air duct

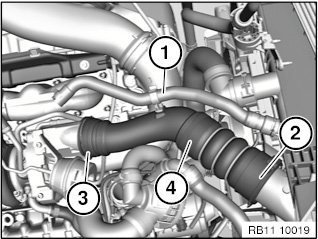

Unclip coolant hose (1) from holder.

Release retainers (2) and (3) of charge air duct (4).

Remove charge air duct (4).





Assemble engine.

Check DME control unit (turbocharger) for correct operation.
