63 99 315 Replacing Bulb(S) For Left or Right Rear Light (on Side Panel)



63 99 315 Replacing Bulb(s) For Left Or Right Rear Light (on Side Panel)







WARNING: Follow instructions for handling light bulbs (exterior lights).







Necessary preliminary work:
Remove socket housing for rear light

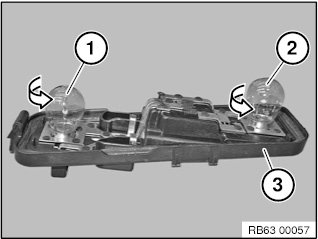

Carefully press down bulb (1/2), turn in direction of arrow and remove from socket (3).
Note bulb type.
