63 99 132 Replacing Bulb For Side Light, Front Left

63 99 132 Replacing Bulb For Side Light, Front Left







WARNING: Follow instructions for handling light bulbs (exterior lights).

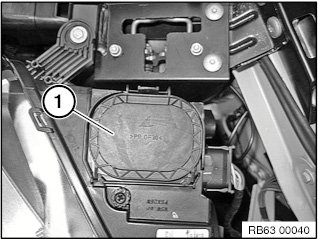

Unlock cover (1) and remove.

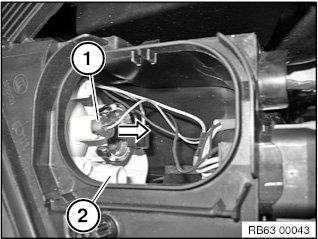

Pull back bulb socket (1) out of headlight (2) in direction of arrow.

Installation note:
Make sure bulb holder (1) is exactly seated in headlight (2).

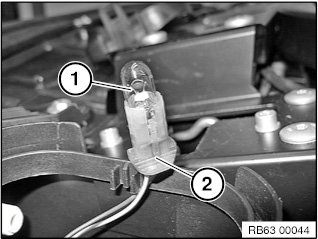

Pull bulb for side light (1) out of bulb socket (2).

Installation note:
Note bulb type.
