63 17 070 Removing and Installing Left Front Fog Lamp

63 17 070 Removing And Installing Left Front Fog Lamp







IMPORTANT: Follow instructions for handling light bulbs (exterior lights)







NOTE: The time value of this job does not include adjustment of the fog lamps.

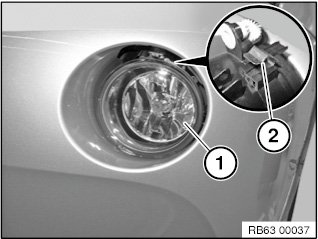

Use suitable tool to release fog light (1) in area (2).
Remove fog light (1) in direction of travel.

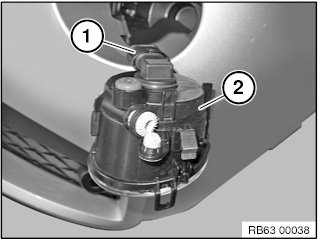

Unfasten plug connection (1) and disconnect.
Remove fog lamp (2).







Replacement:
- Note bulb type
