Fog/Driving Lamp Bulb: Service and Repair



63 99 201 Replacing Halogen Bulb For Left Or Right Front Fog Lamp







WARNING: Follow instructions for handling light bulbs (exterior lights).







Necessary preliminary work:
- Fog light, left

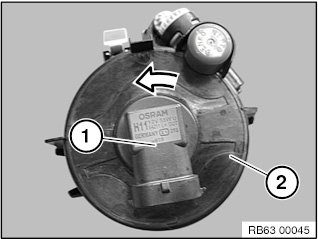

Turn bulb holder (1) in direction of arrow and remove from fog light (2).

Installation note:
Note bulb type.
