61 31 043 Removing and Installing/Replacing Roof Switch Cluster (Complete With Trim) (Roof Function Centre)

61 31 043 Removing And Installing/replacing Roof Switch Cluster (complete With Trim) (roof Function Centre)

Special tools required:







IMPORTANT: Follow instructions for handling light bulbs (interior lights).







IMPORTANT: Read and comply with notes on protection against electrostatic damage (ESD protection).

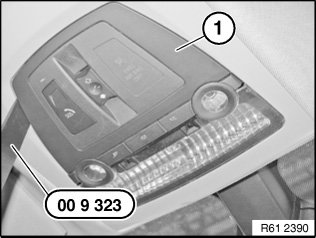

Carefully unclip trim (1) with special tool 00 9 323 and remove.

Installation note:
Ensure trim (1) is correctly seated.

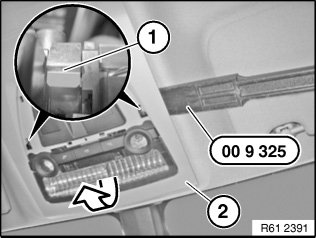

Unlock retaining lugs (1) with suitable tool while carefully lifting out with special tool 00 9 325.
Remove roof switch cluster (2) in direction of arrow.
Unlock plug connections underneath and disconnect.

Installation note:
Retaining lugs (1) must not be damaged.
Make sure roof switch cluster (2) is correctly seated.
Initialise slide/tilt sunroof if necessary.







IMPORTANT:
Disconnecting the plug connection for the SOS emergency call button results in fault memory entries in the telephone control unit (limitation in the emergency SOS call system).
After installation, read out fault memory and if necessary delete entry.
