65 50 170 Removing and Installing/Replacing Cover For Central Information Display (CID)

65 50 170 Removing And Installing/replacing Cover For Central Information Display (CID)

Special tools required:







IMPORTANT: Read and comply with notes on protection against electrostatic damage (ESD protection).







Necessary preliminary work:
- Remove Central Information Display (CID)

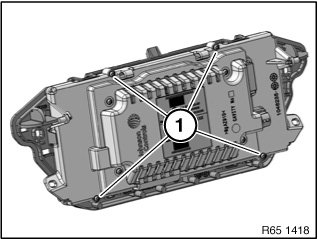

Release screws (1).
Tightening torque: 65 50 1AZ

NOTE: To tighten screws, use special tool 00 9 460.







IMPORTANT: Risk of damage.

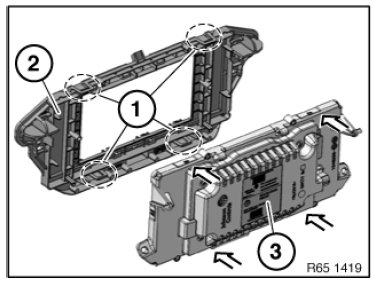

Carefully unlock latch mechanisms (1) with a suitable tool. Remove cover (2) from Central Information Display (3).







IMPORTANT: Before/after assembly, cover is bolted to the Central Information Display, correct installation position must first be checked.







Installation note:

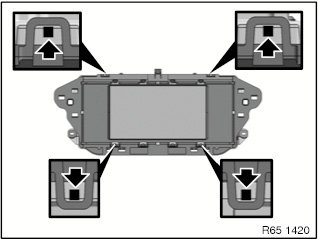

Before connecting the screw connection, check whether latch mechanisms marked with an arrow are correctly seated.







Installation note:

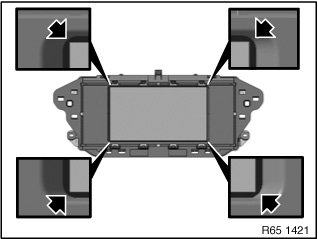

Before connecting the screw connection, check all-round rim at the places marked with an arrow.
