65 50 057 Removing and Installing/Replacing Central Information Display (CID)

65 50 057 Removing And Installing/replacing Central Information Display (CID)







IMPORTANT: Read and comply with notes on protection against electrostatic damage (ESD protection).







Necessary preliminary work:
- Remove decorative strip on dashboard in middle

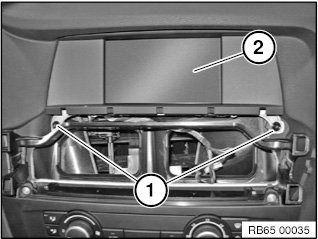

Release screws (1).
Tightening torque 65 50 1AZ.
Remove CID (2).

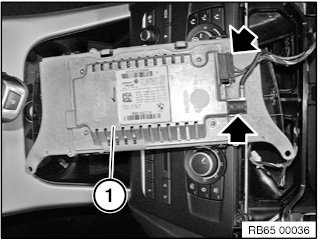

Unlock plug connections and disconnect.
Remove CID (1).







Replacement:
Carry out vehicle programming/encoding.
