64 31 105 Removing and Installing/Replacing Right Microfilter Housing Cover

64 31 105 Removing And Installing/replacing Right Microfilter Housing Cover







Remove sealing lips at marked points.
Unclip line and water hose (1) from cover (3).
Unlock retaining lug (2).
Feed out cover (3).

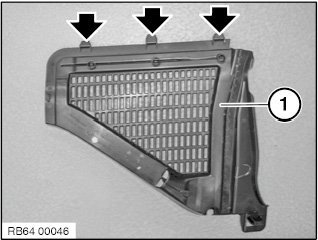

Cover tabs (1) must snap in correctly under cowl panel.
