64 31 016 Replacing Recirculated Air Microfilter

64 31 016 Replacing Recirculated Air Microfilter

Special Tools Required:

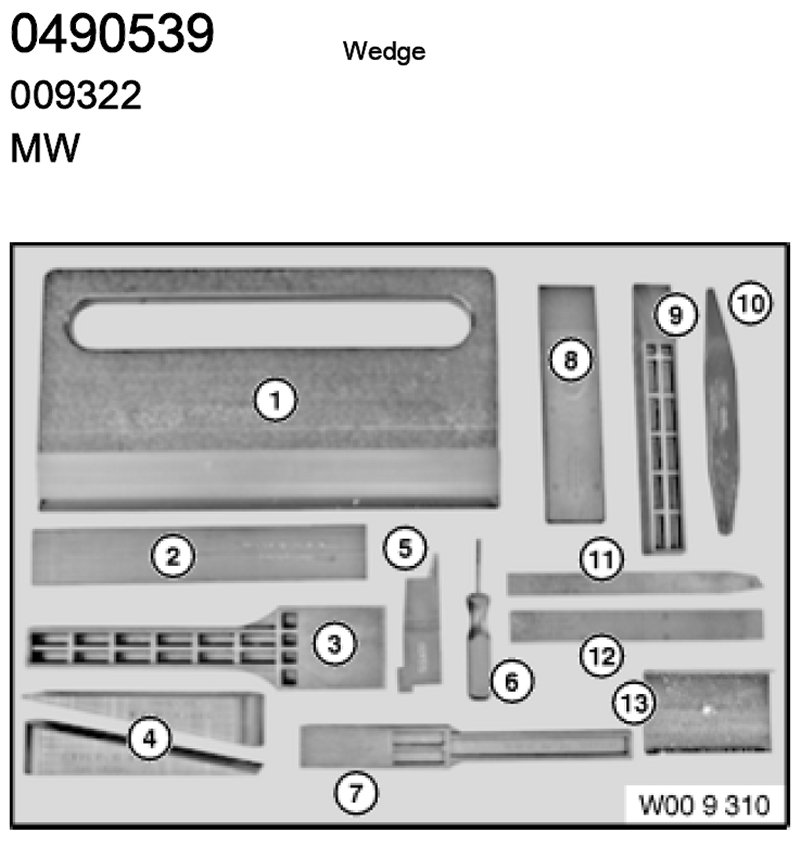

- 00 9 322

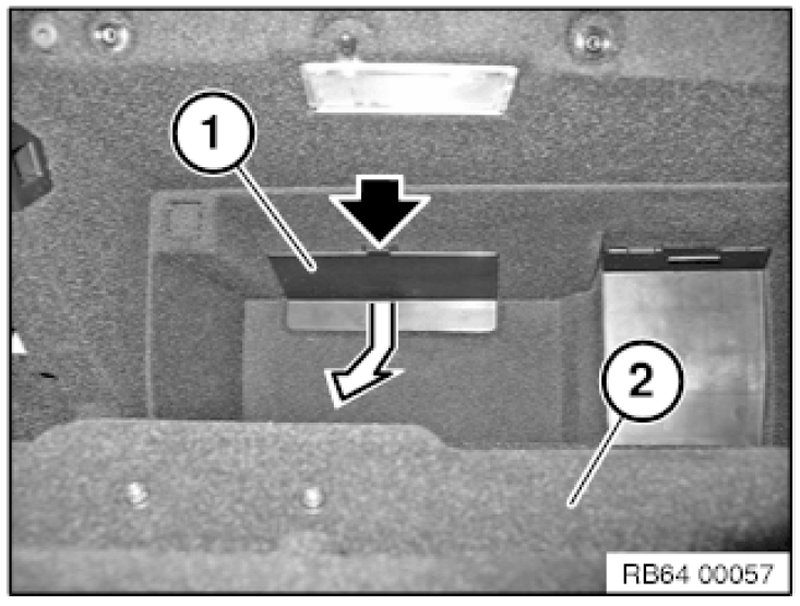

Open glove compartment (2).

Unclip service bracket (1) at marked location and remove in direction of arrow.






Unclip flap (1) at the marked tabs and remove in direction of arrow.

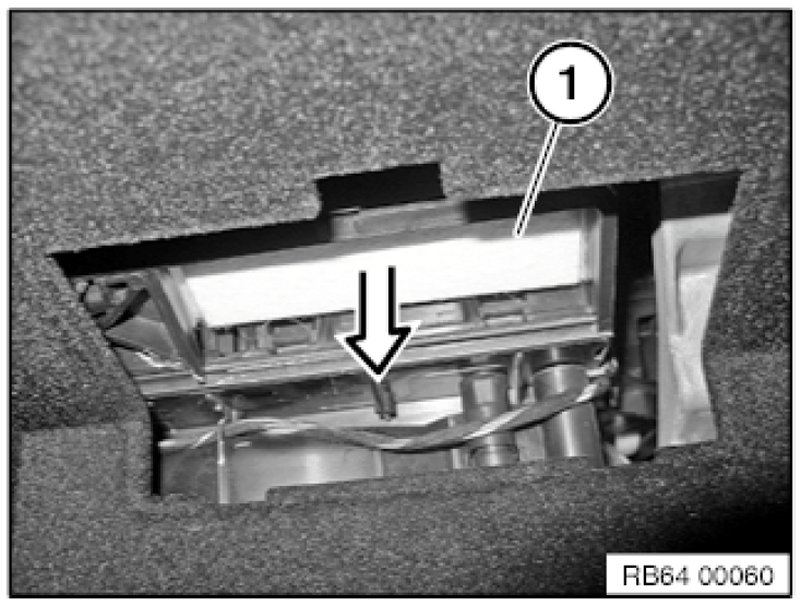

Remove right microfilter (1) in direction of arrow.

If necessary, use special tool 00 9 322 as and aid.

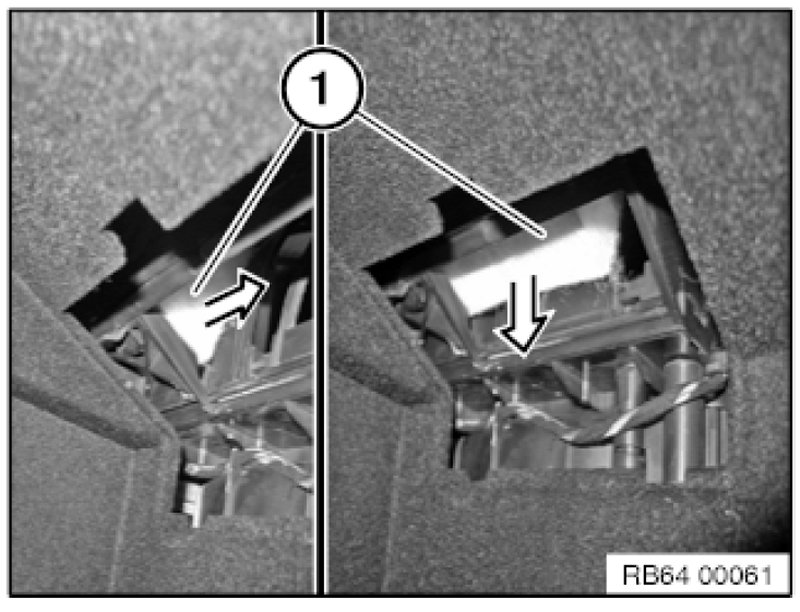

First, pull the left microfilter (1) to the right and then remove towards the bottomw.

If necessary, use special tool 00 9 322 as an aid.
