Auxiliary Cabin Heater: Service and Repair

64 12 060 Removing And Installing/replacing Complete Electric Auxiliary Heating







Risk of burning.
Carry out repair work only after engine has cooled down.







Necessary preliminary work:
- Remove support for dashboard

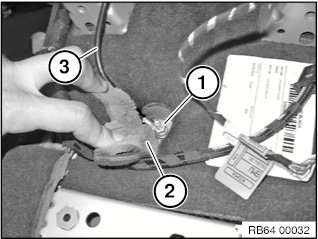

Fold up the carpet (2) as shown.
Slacken nut (1).
Take off earthing cable (3).

Installation note:
Ensure correct line routing.

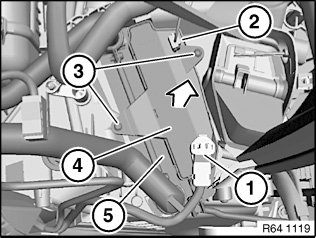

Unlock plug connections (1) and (2) and disconnect.
Release screws (3).
Remove electric auxiliary heater (4) in direction of arrow from the heating and air conditioning unit (5).
