64 11 872 Removing and Installing/Replacing Servodrive For Blending Flap

64 11 872 Removing And Installing/replacing Servodrive For Blending Flap (right)








Necessary preliminary work:
- Remove right glove box with housing

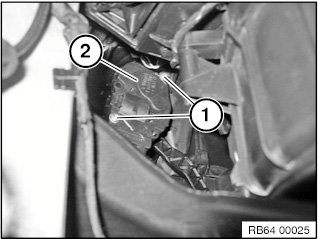

Release screws (1).
Detach actuator drive for air mix flap (2).
Unlock associated plug connection and disconnect.







Servomotors must be readdressed in the event of replacement.
Addressing can only be carried out with the BMW diagnosis system.

Service functions:
- Body
- Heating and air conditioning function
- Flap motors
- Readdress flap motors
