64 11 866 Removing and Installing/Replacing Servodrive For Blending Flap (Left)

64 11 866 Removing And Installing/replacing Servodrive For Blending Flap (left)







Necessary preliminary work:
- Remove support for dashboard

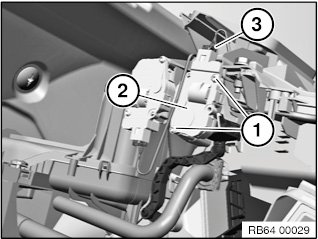

Release screws (1).
Remove actuator drive (2).
Unlock plug connection (3) and disconnect.







IMPORTANT:
Servomotors must be readdressed in the event of replacement.
Addressing can only be carried out with the BMW diagnosis system.

Service functions:
- Body
- Heating and air conditioning function
- Flap motors
- Readdress flap motors
