64 11 856 Removing and Installing/Replacing Servodrive for Central Kinematics (A/C Control)

64 11 856 Removing And Installing / Replacing Actuator Drive For Central Kinematics (A / C Control)







IMPORTANT:
Servomotors must be readdressed in the event of replacement.
Addressing can only be carried out with the BMW diagnosis system.

Service functions:
- Body
- Heating and air conditioning function
- Flap motors
- Readdress flap motors







Necessary preliminary work:
- Remove right glove box with housing

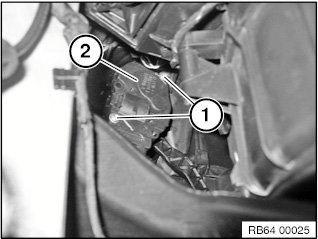

Release screws (1).
Detach actuator drive for central kinematics (2).
Unlock associated plug connection and disconnect.







Servomotors must be readdressed in the event of replacement.
Addressing can only be carried out with the BMW diagnosis system.

Service functions:
- Body
- Heating and air conditioning function
- Flap motors
- Readdress flap motors
