64 11 850 Replacing Servodrive For Rear Compartment Flap

64 11 850 Replacing Servodrive For Rear Compartment Flap







Necessary preliminary work:
- Remove glove compartment on right with housing

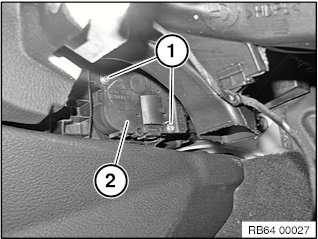

Release screws (1).
Detach actuator drive for rear compartment flap (2) from heating/air conditioning unit.
Unlock associated plug connection and disconnect.







IMPORTANT:
Servomotors must be readdressed in the event of replacement.
Addressing can only be carried out with the BMW diagnosis system.

Service functions:
- Body
- Heating and air conditioning function
- Flap motors
- Readdress flap motors
