64 11 829 Replacing Actuator Drive of Ventilation Flaps

64 11 829 Replacing Actuator Drive Of Ventilation Flaps







Necessary preliminary work:
- Remove support for dashboard

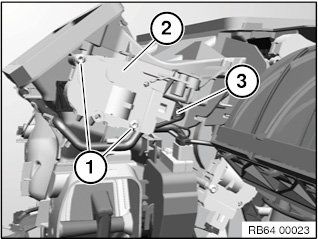

Release screws (1).
Release plug connection (3) and disconnect.
Detach servodrive for ventilation flaps (2) in direction of arrow from heater/air conditioner.







Replacement:
Servomotors must be readdressed in the event of replacement.
Addressing can only be carried out with the BMW diagnosis system.

Service functions:
- Body
- Heating and air conditioning function
- Flap motors
- Readdress flap motors
