13 .. ... Removing Intake Port

13 .. ... Removing Intake Port (N55)

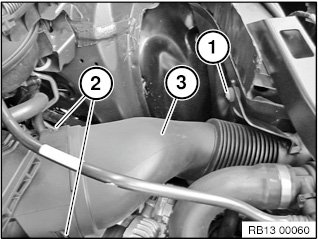

Release screw (1).
Press in catches (2) on intake silencer housing.
Feed out intake duct (3) towards top.
