Securing Engine In Installation Position

11 00 670 Securing the engine in installation position F25 (N47T, N55, N52T)

Special tools required:





Warning!
Danger of injury!
Observe following instructions relating to special tool:
1. Prior to each use, check the special tools for defects, modifications and operational reliability.
2. Damaged/modified special tools must not be used!
3. No changes or modifications may be made to the special tools!
4. Keep special tools dry, clean and free of grease.





Note:
^ Numbering system for special tools has been re-encoded.





Graphic shows: N63 engine

Important!
Special tool 00 6 001 must not be fitted when cross-member (1) is installed!





Necessary preliminary work:
^ Secure the engine compartment lid in the service position.
^ Remove acoustic cover.

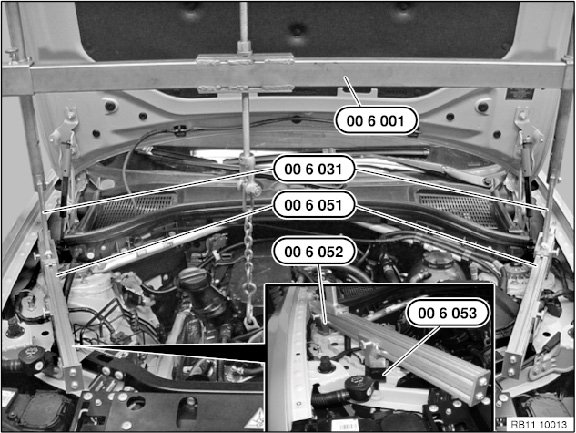

Assembly cross-member 00 6 001 with special tools 00 6 031, 00 6 051, 00 6 052, 00 6 053.

Fit crossmember 00 6 001 with a 2nd person helping.





Note:
N55 only

Screw towing hook (1) into engine block.





Important!
Before lifting the engine, check the lifting lugs for damage (cracks) and to ensure they are seated securely.





Note:
Use suspension lug (1) on engine block.





Important!
Avoid a change of engine position in the transverse or longitudinal direction.
Always make sure there is sufficient clearance between the engine (or its add-on parts) and the body.





Warning!
Danger of injury!
Tighten down all screws and nuts on crossmember 00 6 001.





Release bolts (1) on engine mount.

Raise engine approx. 10 mm with cross-member.

Important!
Observe installation note!
To ensure play between engine mount and engine support arm, lower the engine completely before tightening the screw connection (engine mount/engine support arm).

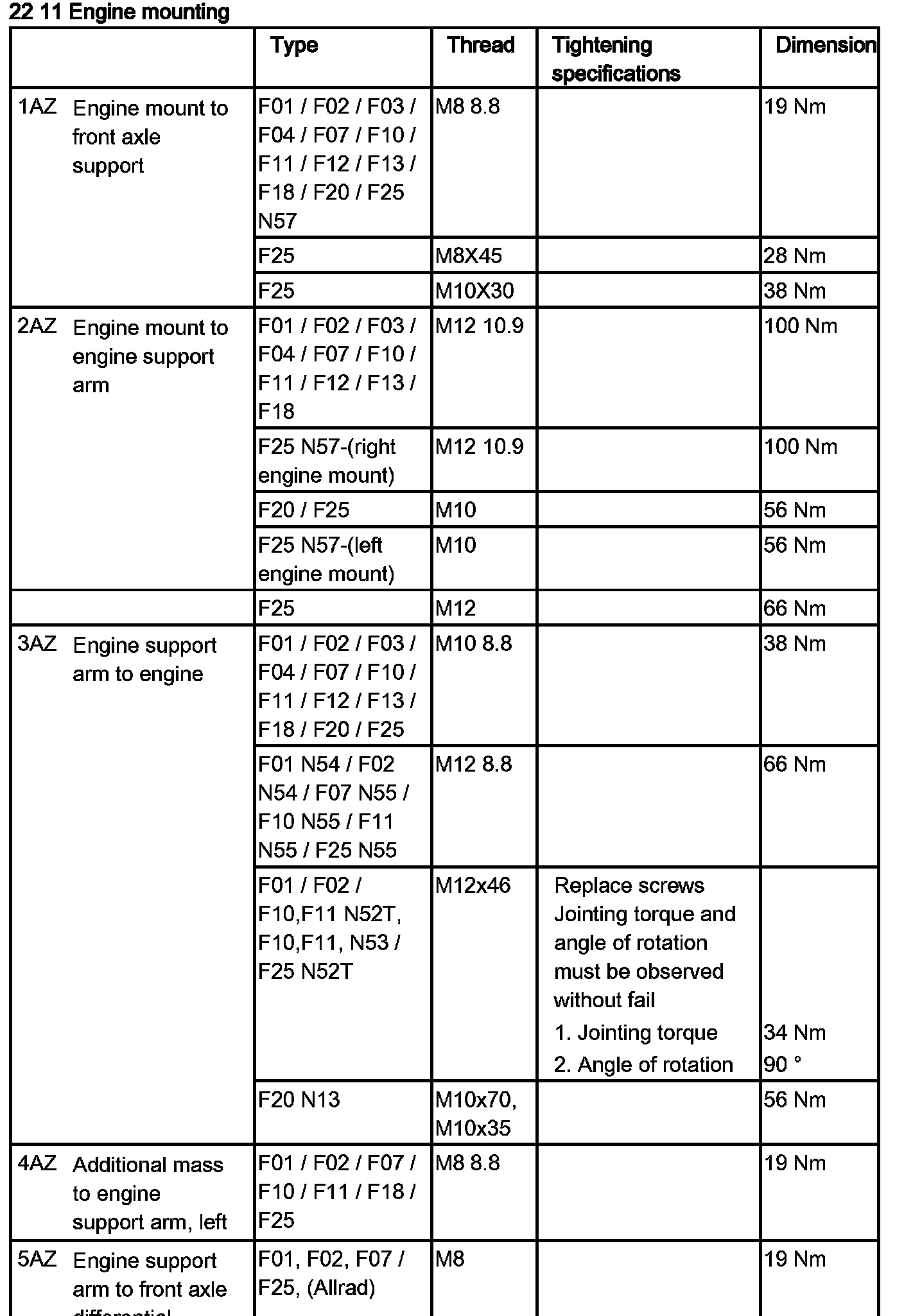

Tightening torque 22 11 2AZ.
