Replacing Right Engine Support Arm

22 11 100 Replacing right engine support arm (N55)

Necessary preliminary work:
^ Secure engine in installation position
^ Remove rear underguard
^ Remove reinforcement plate

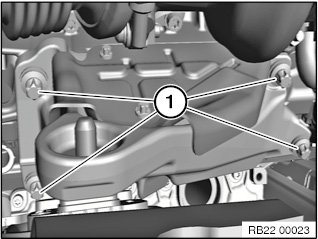

Release screws (1).

Remove engine support arm.

Tightening torque 22 11 3AZ.
