Replacing Right Engine Mount

22 11 001 Replacing right engine mount (N55)

Necessary preliminary work:
^ Remove right engine support arm

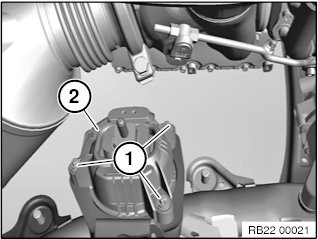

Release screws (1) and remove engine mount (2).

Tightening torque 22 11 1AZ.

Installation note:

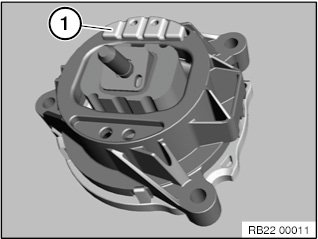

Rubber buffer (1) on engine mount must point towards centre of vehicle.
