Replacing Left Engine Support Arm

22 11 110 Replacing left engine support arm (N55)





Necessary preliminary work:
- Secure engine in installation position
- Remove left charge air duct
- Remove rear underguard
- Remove reinforcement plate
- Partially detach wheel arch trim panel on rear left

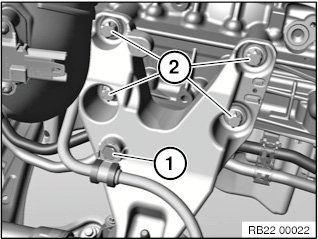

Release screw (1).

Unfasten screws (2).

Remove engine support arm.

Tightening torque 22 11 3AZ.
