64 11 208 Replacing Heater Core

64 11 208 Replacing Heat Exchanger







Necessary preliminary work:
- Remove heater







IMPORTANT: Before ordering spare parts, determine manufacturer of the installed heater.

Installation note:
Pipes are included in the repair kit.

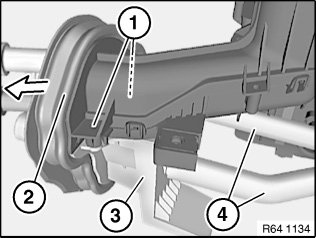

Release screws (1).
Slide rubber grommet (2) with foam seal forward slightly.
Carefully feed pipe holder (3) with pipes (4) past rubber grommet (2).

Installation note:
If necessary, replace rubber grommet (2) and/or foam seal.
Make sure rubber grommet (2) is fitted correctly on pipe holder (3).

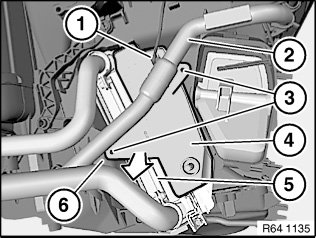

If necessary, remove coolant hose (2).
Release screws (3) and remove cover.

NOTE:
Diesel version only:
Unfasten plug connection (1) and disconnect.
Withdraw electric auxiliary heater (4) in direction of arrow.

Remove heat exchanger (5) from heater/air conditioner (6).
