Home >> BMW >> 2011 >> X3 xDrive 35i (F25) L6-3.0L Turbo (N55) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Collision Avoidance and Parking Assist Systems >> Camera-Based Driver Support Systems Control Unit and Camera

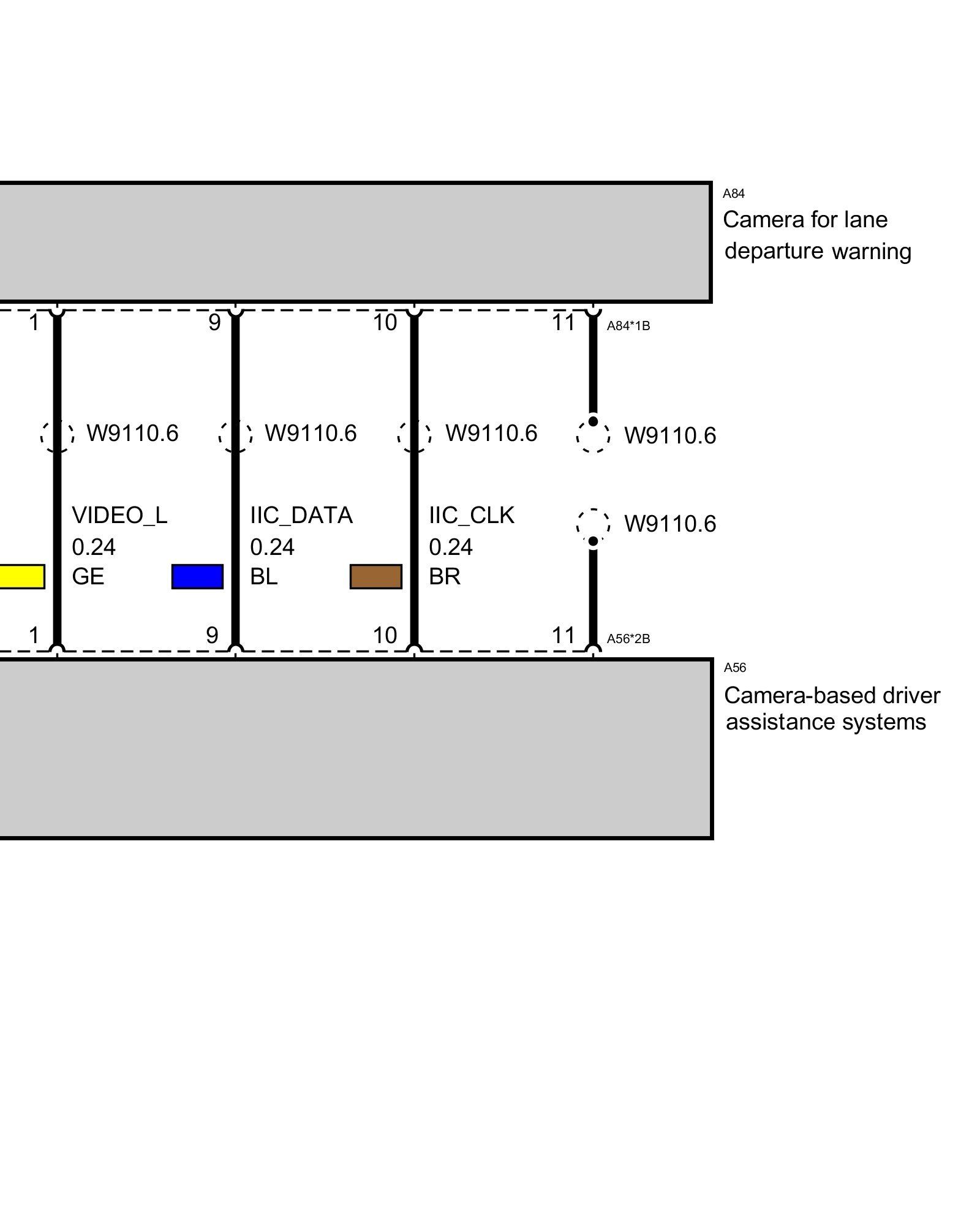

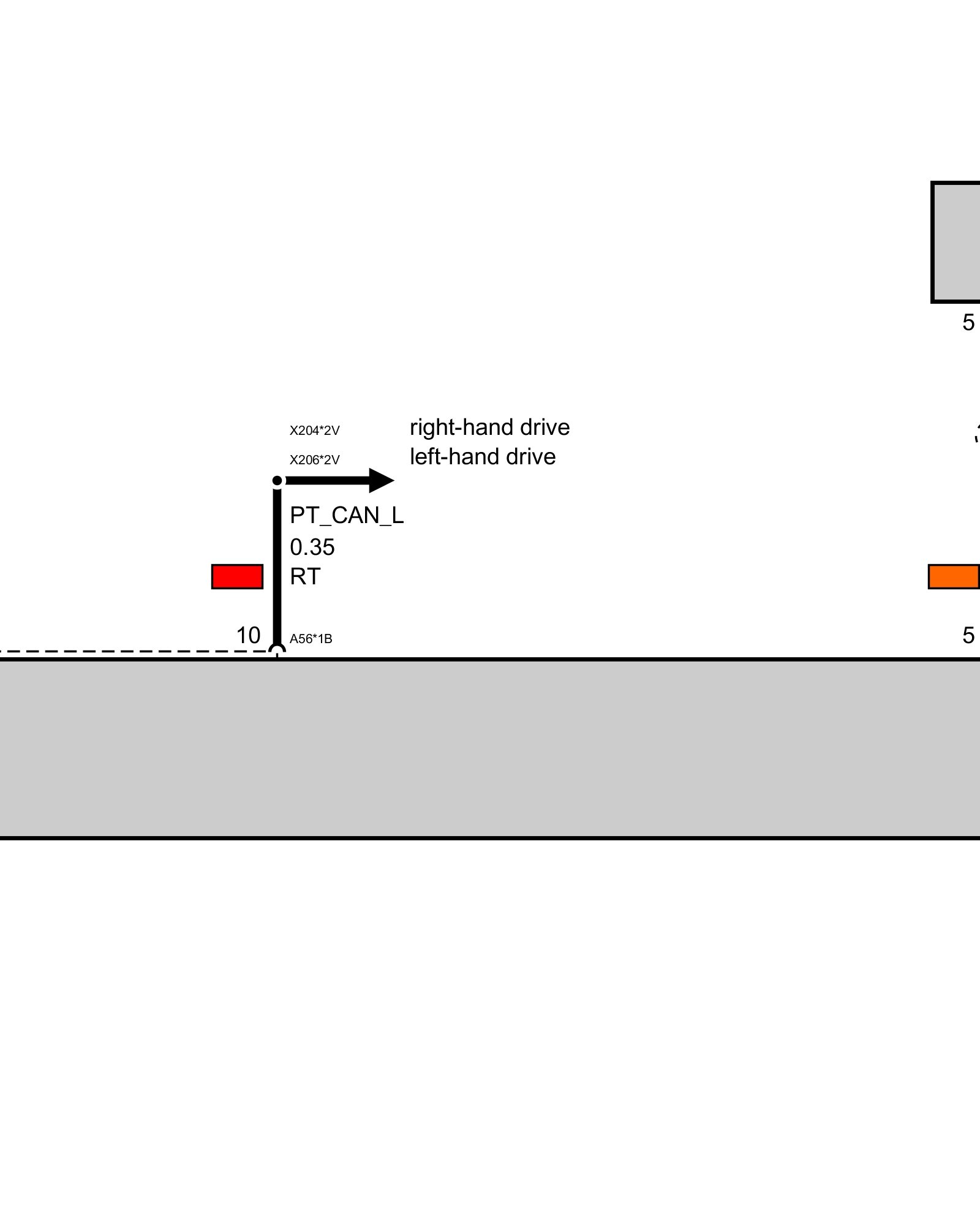

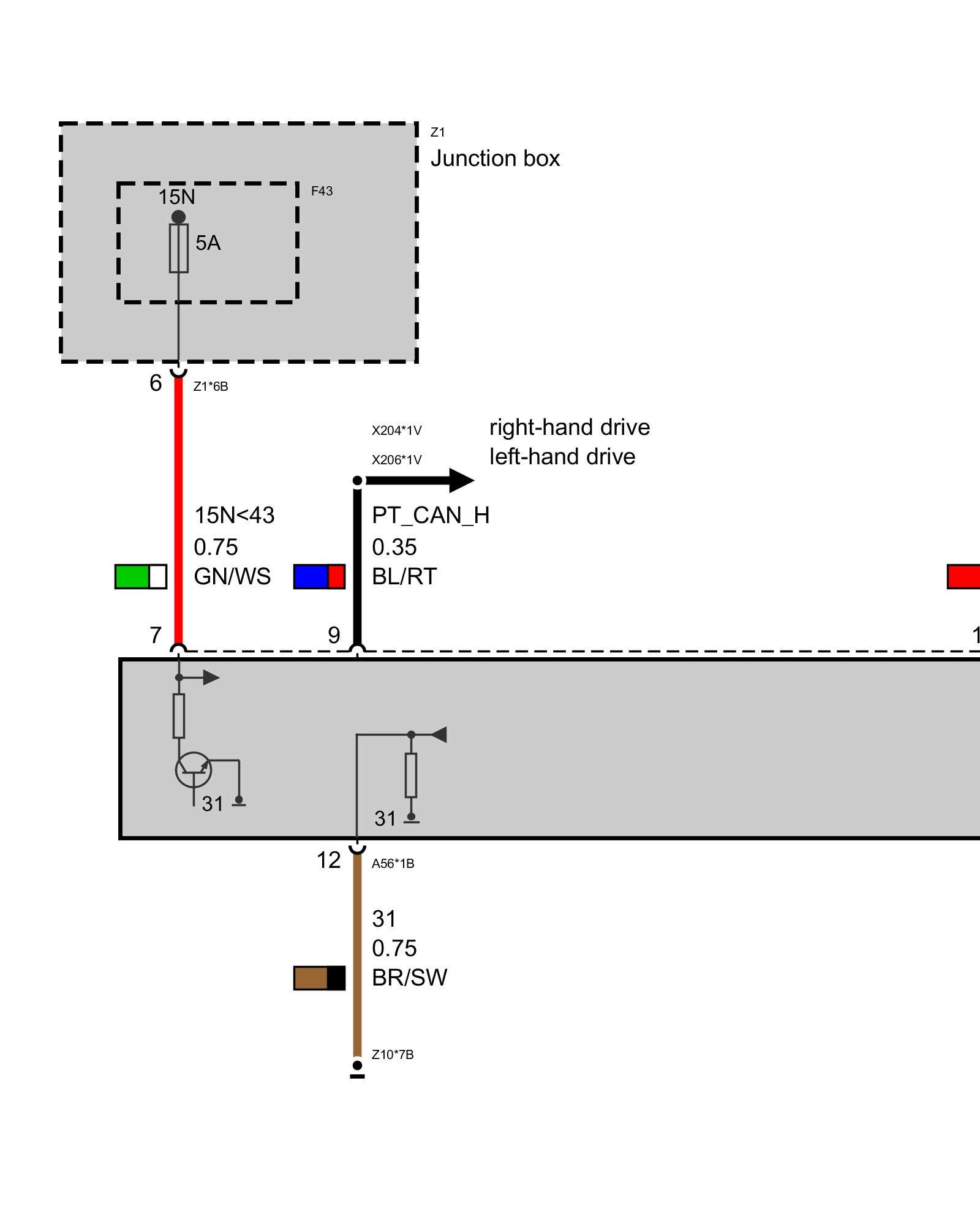

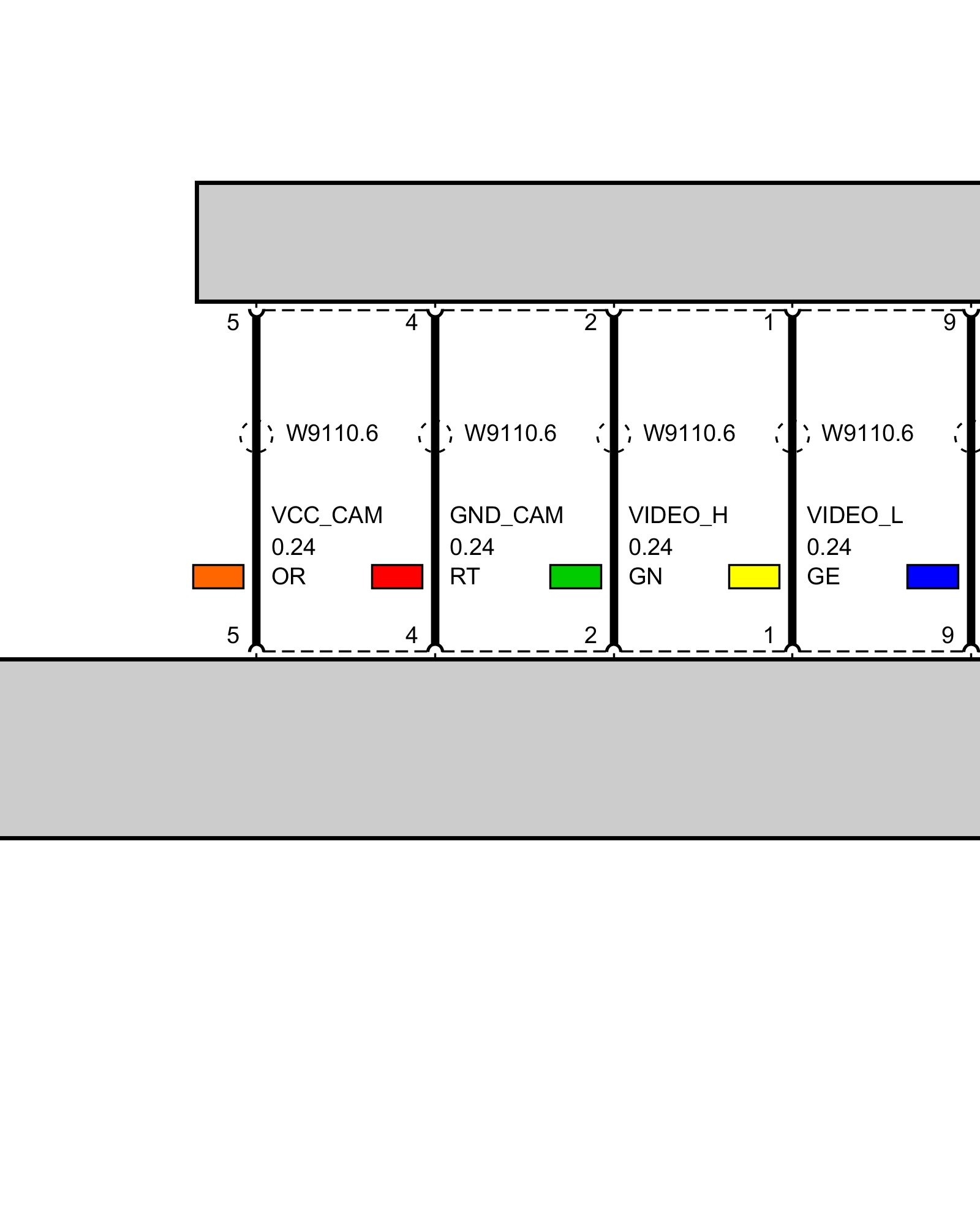

Camera-Based Driver Support Systems Control Unit and Camera



Camera-Based Driver Assistance Systems
