34 31 505 Removing and Installing/Replacing Master Brake Cylinder for DSC

34 31 505 Removing and installing / replacing master brake cylinder for DSC





Necessary preliminary work:
^ Read and comply with General Information.
^ Remove expansion tank.
^ Remove left partition wall for equipment compartment.

After completing repair work, bleed brake system with DSC.

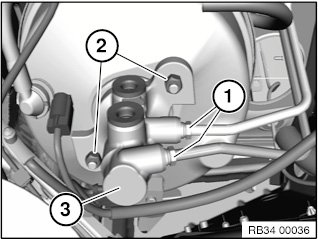

Detach pipes (1) and close off.

Installation note:
Tightening torque 34 32 1AZ.

Release nuts (2) and withdraw master brake cylinder (3) from brake booster.

Installation note:
Replace self-locking nuts.

Tightening torque 34 31 1AZ.





Installation note:

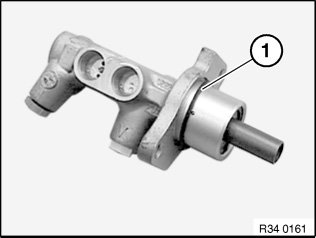

Replace sealing ring (1).

When inserting the brake master cylinder into the brake servo, make sure the push rod of the brake servo and the brake master cylinder are in perfect alignment.
