51 32 211 Replacing Front Left or Right Rubber Guide For Left or Right Door Window

51 32 211 Replacing front left or right rubber guide for left or right door window







Necessary preliminary tasks:
- Remove exterior mirror on front door
- Remove front door trim panel
- Remove cover on window frame of front door

IMPORTANT: The "Instructions on fitting window guide seals" serve as the basis for this repair instruction and must be observed without fail.

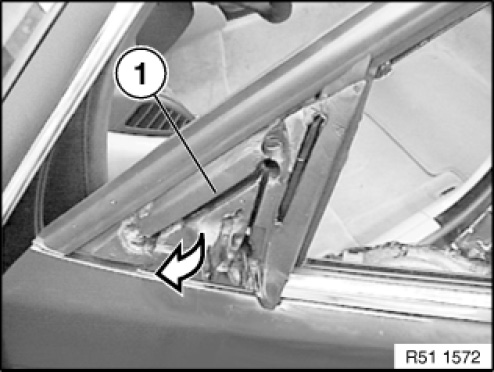

Remove sound insulation (1).

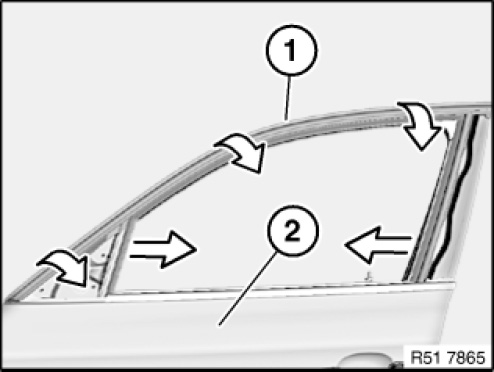

Detach rubber window seal (1) in direction of arrow from front door (2).

Installation note:
Moisten rubber window seal (2) with water before fitting.







Installation note:

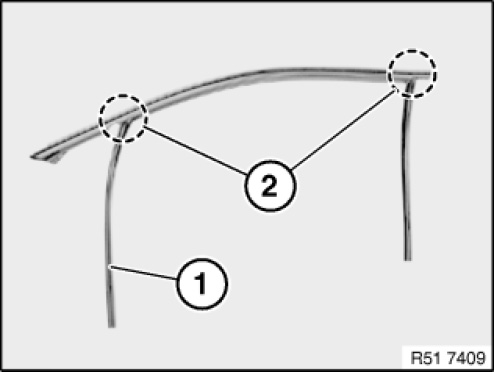

Rubber guide (1) must not be damaged in corners (2).







Installation note:

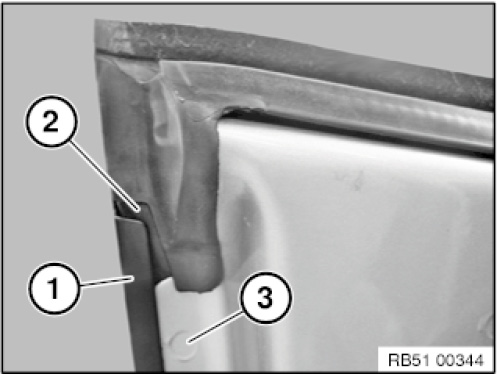

Ensure that the rubber window seal (2) is correctly mounted on the window frame (3) and the cover is correctly mounted on the window frame (1).
