51 32 160 Removing and Installing/Replacing Housing Cover on Inner Left or Right Door Window Frame

51 32 160 Removing And Installing/Replacing Housing Cover On Inner Left Or Right Door Window Frame







Necessary preliminary work:
- Open side window if necessary
- Remove front door trim panel

F30 / F31 / F35 only:
- Remove inner weather strip







IMPORTANT:
- Risk of damage.
- Cover (2) must not be kinked.

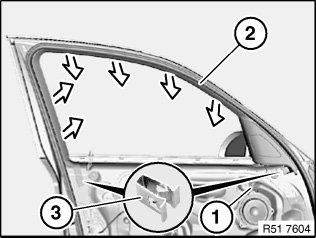

Lever out cover (2) at clamps (3).
Unclamp cover (2) in direction of arrow and remove.

Installation note:
Fixtures for clamps (3) on cover (2) must not be missing or damaged.







Installation note:

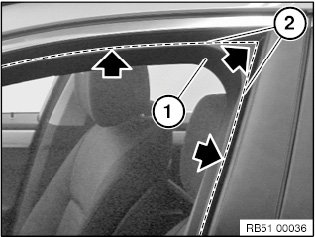

Make sure cover (1) is correctly seated in joint of rubber window seal (2).
Make sure cover (1) is correctly seated on door seal.
