51 21 330 Removing and Installing/Renewing Weather Strip on Inner Front Door

51 21 330 Removing And Installing/renewing Weather Strip On Inner Front Door







Necessary preliminary work:
- Remove front door trim panel

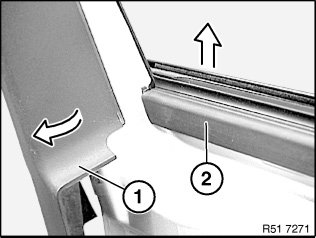

Lever out cover (1) at rear slightly.
Start at rear with removal of weather strip (2).







Pull off weather strip (1) towards top.

Installation note:

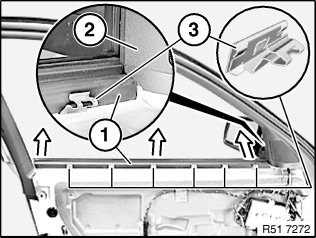

If necessary, replace faulty clamps (3).

Note that the first clamp differs from the others (3).
Insert weather strip (1) below cover (2) at front.







Installation note:

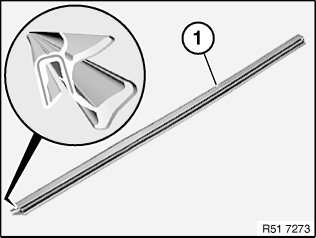

Coat weather strip (1) prior to fitting with approved lubricant.
Start with installation at front.
