51 47 490 Removing and Installing / Replacing Front Underbody Protection

51 47 490 Removing and installing / replacing front underbody protection

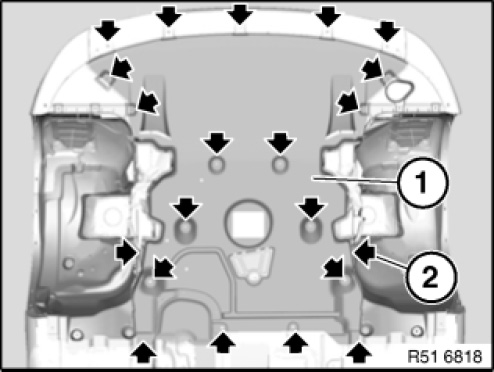

NOTE: Illustration only an example. Detail deviations, depending on engine version, are possible.







Unfasten screws (2).
Tightening torque 51 75 1AZ.
Remove front underbody protection (1).
