61 31 204 Replacing Operating Unit For Seat Adjustment

61 31 204 Replacing Operating Unit For Seat Adjustment







Necessary preliminary work:
- Remove outer cover on front seat

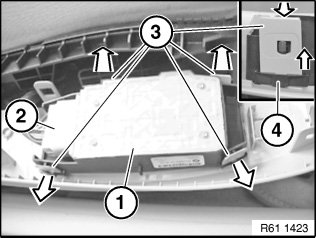

Unlock retaining tabs (3) in direction of arrow and remove switch combination (1) from cover.
Disconnect plug connection (2).

Installation note:
Retaining tabs (3) of cover and guide (4) of switch combination (1) must not be damaged.
Make sure switch combination (1) is correctly seated in retaining tabs (3).
