Removal and Replacement

52 26 ... Removing and installing all guide sleeves for rear head restraints







Necessary preliminary tasks:
- Remove head restraint from rear seat







Press backrest cover with padding next to guide downwards to expose retaining lugs.

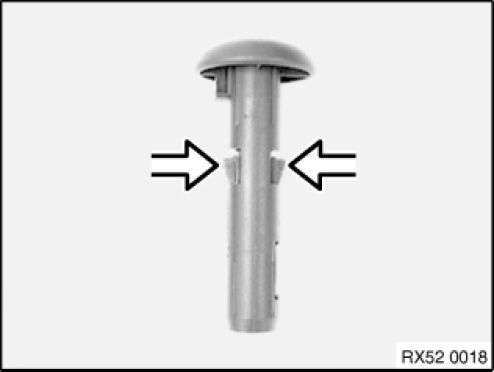

Unlock retaining lugs on left and right with screwdriver and lift up to remove guide.
Guide sleeves with locks have two retaining lugs.
Guide sleeves with no latches have one retaining lug.

IMPORTANT: Do not damage backrest cover.

Installation note:

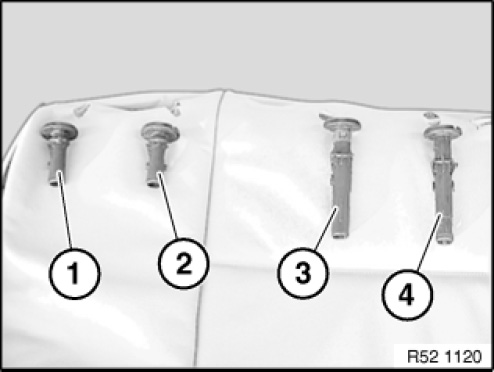

Replace guide sleeves and install as follows:







1. Short guide sleeves centre right
2. Short guide sleeve with centre left lock
3. Long guide sleeve, outer right
4. Long guide sleeve with outer left lock
