52 26 420 Replacing Backrest Cover For Rear Seat Including Through-Loading System on Left

52 26 420 Replacing Backrest Cover For Rear Seat Including Through-Loading System On Left

Special tools required:







Necessary preliminary work:
- Remove rear seat backrest, left
- Remove guide sleeves

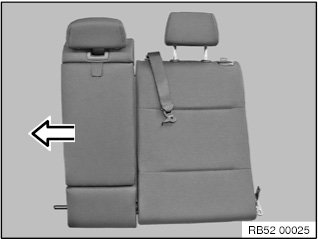

Remove centre rear seat backrest from support of left-hand backrest in direction of arrow.







Depending on equipment specification:
Ohne SA 413: Unclip cover (1) for combined roller cover mount.
Mit SA 413: Unclip trim cover for combined roller cover mount.







With option SA 413:
Release screws (1).
Tightening torque 52 26 09AZ.
Remove mount for combined roller cover.







Gently slide lock finisher (1) on side edge of backrest downwards and unclip to one side.
Gently slide lock finisher on rear side towards middle.
Unclip and remove lock finisher.







Installation note:
Retaining lugs on cover must not be damaged.
If necessary, replace faulty cover.







IMPORTANT: Risk of damage.

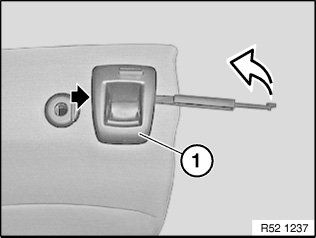

Insert plastic wedge from outside between cover (1) and lock.
Carefully lever outer side of cover (1) with plastic wedge upwards out of catch.
Lever inner side of cover (1) with plastic wedge out of catch.
Remove cover upwards.







Release screws.
Tightening torque 52 26 06AZ.
Lift out trim.







Feed belt strap out of trim.







Release screw (1).
Tightening torque 52 26 02AZ.
Remove outer mount (2).







Lever out welt in marked area from backrest frame.
Remove backrest cover with padding from backrest frame.







Detaching cover and upholstery:
- Release all clamps in marked area
- Remove cover from upholstery
- Remove all remnants of retainers from cover and padding







Installation note:
Insert new clamp (2) with special tool 52 0 050 and bend closed.







Replacing cover:
- Pull all trim wires out of cover
- If necessary, cut pockets in new cover for trim wires
- Push trim wires into cover pockets
