52 26 315 Removing and Refitting/Replacing Lock For Centre Rear Seat Backrest

52 26 315 Removing And Refitting/Replacing Lock For Centre Rear Seat Backrest







Unclip trim cover for lock with a plastic wedge.
Move trim cover for lock a little towards the middle.
Detach trim cover for lock by pulling towards rear.







Installation note:
Retaining lugs on the trim cover for the lock must not be damaged.
Replace defective trim cover for lock.

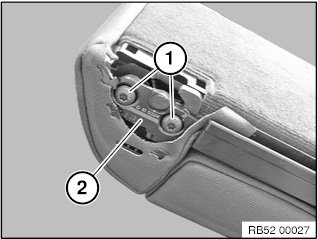

Release screws (1) and feed lock (2) out of rear seat backrest.
Tightening torque 52 26 11AZ.







Installation note:

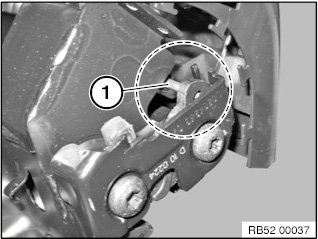

Make sure operating rod (1) is correctly seated in the lock.
Run a function check.
