52 26 310 Removing and Installing/Replacing Lock For Right Rear Seat Backrest

52 26 310 Removing And Installing/Replacing Lock For Right Rear Seat Backrest

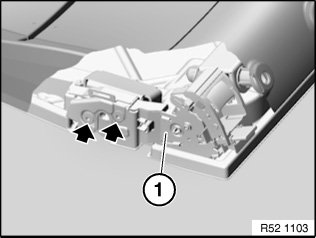

Gently slide lock finisher (1) on side edge of backrest downwards and unclip to one side.
Gently slide lock finisher on rear side towards middle.
Unclip and remove lock finisher.

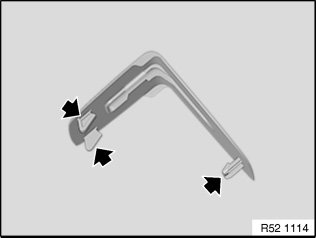

Installation note:
Retaining lugs on cover must not be damaged.







IMPORTANT: Risk of damage.

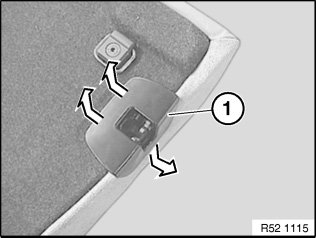

Insert plastic wedge from outside between cover (1) and lock.
Carefully lever outer side of cover (1) with plastic wedge upwards out of catch.
Lever inner side of cover (1) with plastic wedge out of catch.
Remove cover upwards.

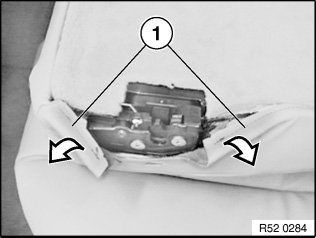

Lever out backrest cover (1) in working area.







Release screws and feed door lock (1) out of rear seat backrest.
Tightening torque 52 26 11AZ.
