52 26 206 Removing and Installing/Replacing Rear Panel on Left Rear Seat Backrest With Through-Loading System

52 26 206 Removing And Installing/Replacing Rear Panel On Left Rear Seat Backrest With Through-loading System

Special tools required:







Depending on equipment specification:

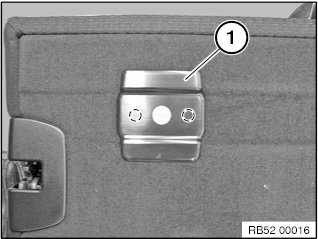

Ohne SA 413: Unclip cover (1) for combined roller cover mount.
Mit SA 413: Unclip trim cover for combined roller cover mount.







With option SA 413:

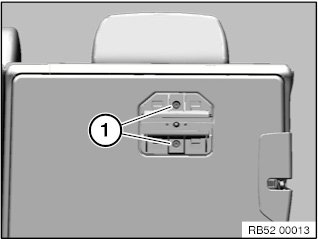

Release screws (1).
Tightening torque 52 26 09AZ.
Remove mount for combined roller cover.

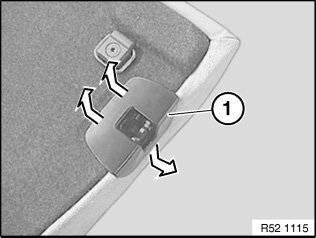

Gently slide lock finisher (1) on side edge of backrest downwards and unclip to one side.
Gently slide lock finisher on rear side towards middle.
Unclip and remove lock finisher.







Installation note:

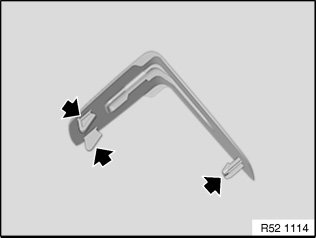

Retaining lugs on cover must not be damaged.
If necessary, replace faulty cover.

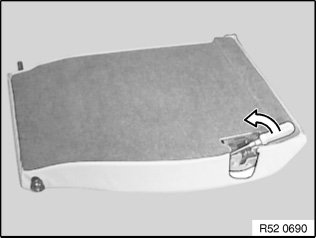

Lever out welt in marked area from backrest frame.
Remove rear panel from backrest frame.
