52 26 202 Removing and Installing/Replacing Rear Panel on Centre Rear Seat Backrest

52 26 202 Removing And Installing/Replacing Rear Panel On Centre Rear Seat Backrest

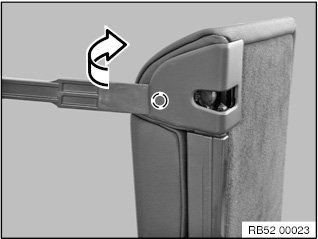

Unclip trim cover for lock with a plastic wedge.
Move trim cover for lock a little towards the middle.
Detach trim cover for lock by pulling towards rear.







Installation note:

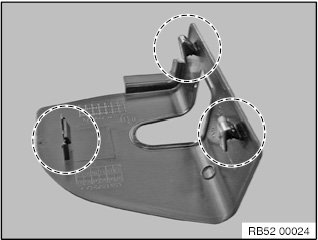

Retaining lugs on the trim cover for the lock must not be damaged.
Replace defective trim cover for lock.

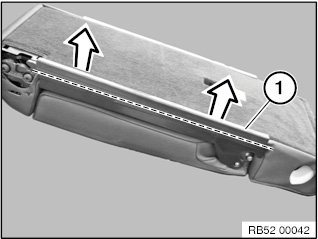

Carefully unclip strip (1) for channel cover along the marking on left and right.







Installation note:

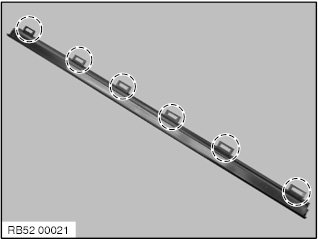

Latch mechanisms must not be damaged Replace defective strip for channel cover.

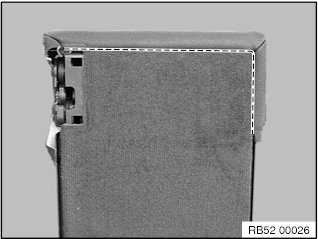

Lever out welt in marked area.

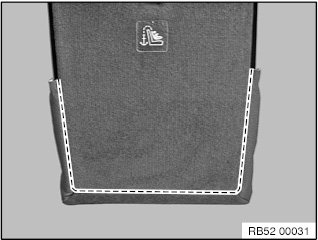

Lever out welt in marked area.
Detach rear panel.
