52 26 032 Removing and Installing/Replacing Cup Holders In Centre Armrest



52 26 032 Removing And Installing/Replacing Cup Holders In Centre Armrest

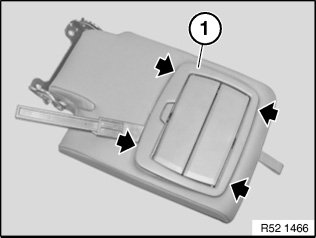

Unclip trim (1) with plastic wedge.

Installation note:
Replace trim (1) if retaining lugs are faulty.

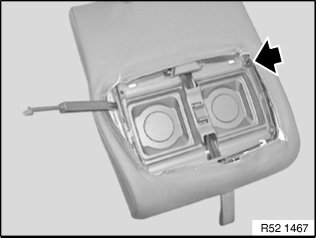

Lever cup holders on left and right out of centre armrest with plastic wedge.

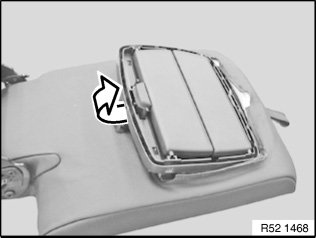

Remove cup holders from centre armrest.
