52 26 012 Removing and Installing/Replacing Backrest For Right Rear Seat

52 26 012 Removing And Installing/Replacing Backrest For Right Rear Seat







Necessary preliminary work:
- Remove armrest side section

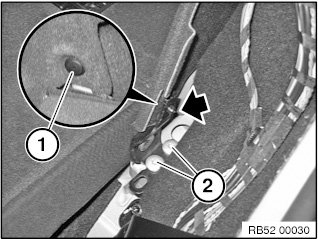

Lift out pin and remove expanding rivet (1).
Unfasten screws (2).
Tightening torque 52 26 01AZ.

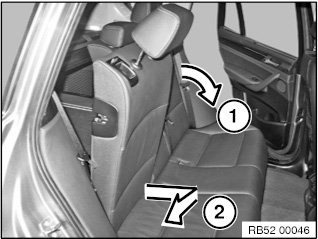

1. Tilt backrest slightly forwards.
2. Pull backrest forwards and outwards out of centre mount







Installation note:

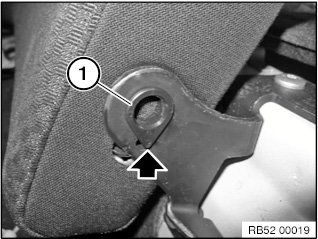

Make sure plastic bush (1) is fitted correctly.
Lock plastic bush (1) with lug in centre mount.
